QMRT approach to Chondrogenesis

Conclusion

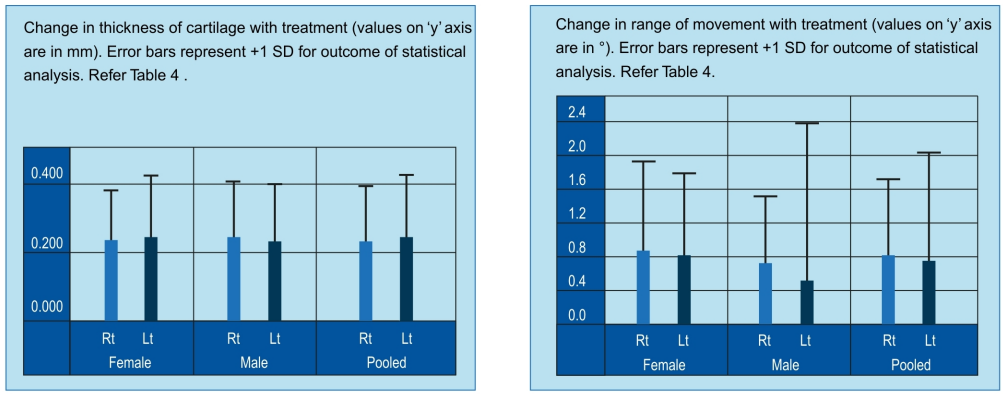

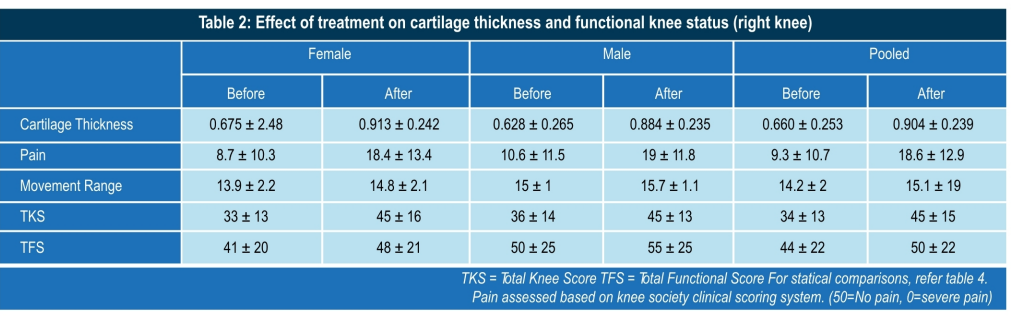

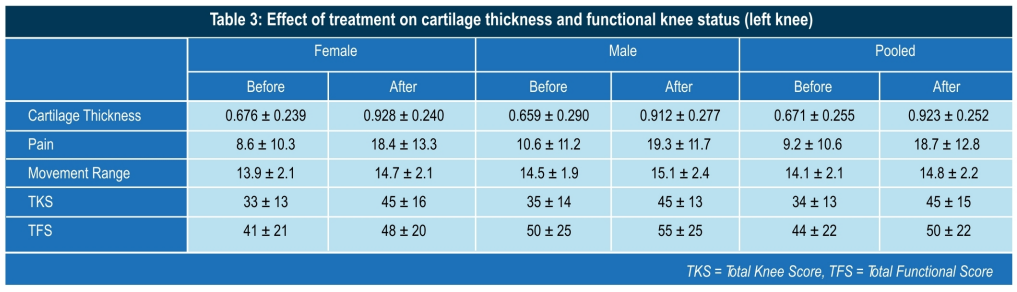

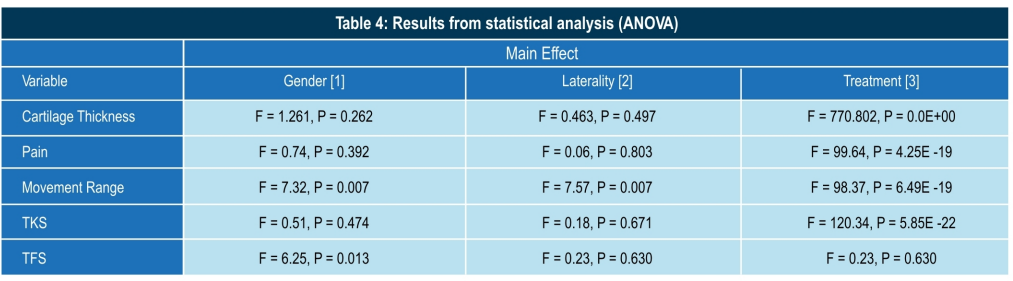

Significant main effect, i.e. the increase in cartilage thickness, is due to the treatment only (F = 770.802;P=0.00E+00)

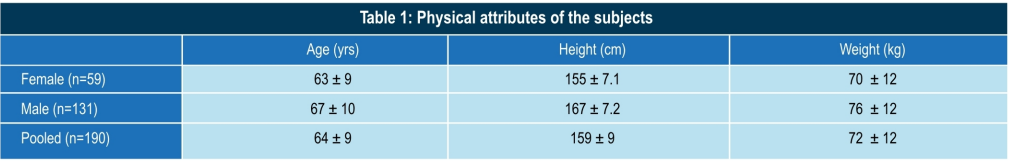

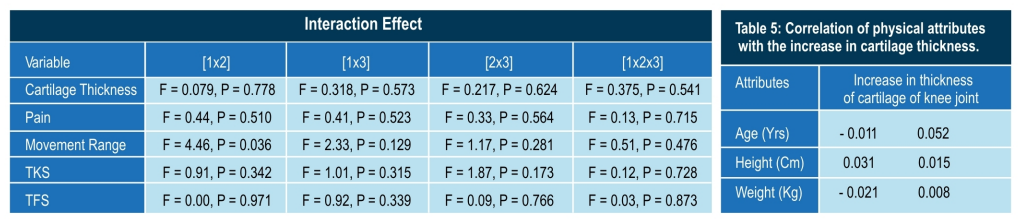

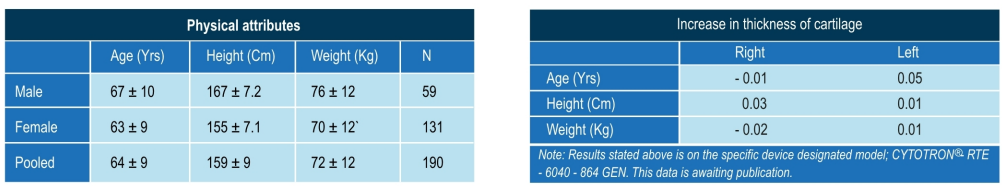

There was no gender difference in the response to the treatment.
There was no laterality effect in response to the treatment

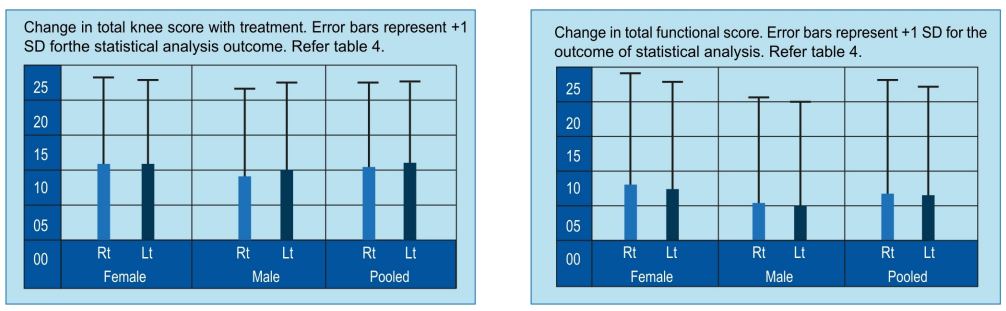

Significant reduction in pain, increased range of movements.
Better joint stability. Significant improvement in general quality of life.
“QMRT is the only known modality that proves cartilage re-growth- and CYTOTRON does it”

Technical Specification of CYTOTRON

Classification: Class Ila Medical Device.

Indication of use: The Device is intended to be used for Regenerative and Degenerative Tissue Engineering i.e, it can be used for regenerating tissues in-situ and to cause degeneration of uncontrolled growth of tissues.

Regeneration of tissues the current indication is for use in protein linked degenerative disorders like Osteoarthritis enabling regrowth of tissue like articular cartilage.

*Contraindications: Critically ill patients on life support system, pregnancy, patients unable to lie down for the duration of therapy, Patients with electrically,Magnetically or mechanically activated implants (eg cardiac pacemakers, Bio stimulators, Neuro stimulators, cochlear Implants, hearing aids)

MRI Incompatible implants near the target region. e.g intra medullary nail, intracranial aneurysm clips, stents, intra orbital metal fragments etc.

Patients with concomitant neoplastic disease especially Chondrosarcoma.

*Product Specifications :
The power supply Cytotron must meet these specifications:
a. Voltage fluctuation+/- 10% or less
b. Voltage imbalance +/- 3% or less
c. Frequency variation +/-4% or less
d Voltage distortion THD = 10% or less

*Recommended environmental specifications:
Operating Temperature range 18°C to 30°C, Humidity range 10% to 75% RH. Atmospheric pressure 700 to 1060 hPa, Transport/Storage Temperature range 10°C to 80°C, Humidity range 10% to 90% RH, Atmospheric pressure 500 to 1060 hPa

Mode of usage: Continuous
Life of the equipment: Typically assessed at about ten years

Typical operating voltage: 230 V, 50 Hz. single phase Maximum operating current: 12 Amps

Typical operating current: 6A

IEC classification: Type B, Class 1, IPX0

MDD classification: Class lla

Target resolution: 11.25 degrees

Power supply type: Medical grade switch mode power supply complying with EN 60601-1, EN 60601-1-2

Frequency band: VLFj LF -HF and VHF radio bands

Instantaneous magnetic field strength: 1mT to 6T for the time duration 2.0 μsec to 10 msec depends on the treatment and Dosimetry value.

E-Field: Broadband; average 100 dB V/m/MHz @ 4MHz

H-Field: Broadband; 20dB (below 1 kHz)

Broadband common mode current in control cables: 100dBmA/MHz @ 150 kHz
Fuses: Mains Fuse-12A, Isolation Transformer Fuse-2.5A

Laser Guiding System:
Output: 625 to 680 nanometer wave length less than 5 mill watt, Complies with CFR Part 1040.10 and 1040.11 Class III A LASER application

QMRT Guns:

Magnetic field
Type: MF6040-L
Guns: K- _Ferrite type; Near Field; gain; 10dB
Typical voltage: 60 Volts
Typical current:4 Amps

Radio frequency
Type of antenna:Helical
Q factor of the antenna:560
Antenna gain:13 db
Centre frequency: 68.4 MHz
3dB BW (Bandwidth): ± 4 MHz
6dB BW (Bandwidth):± 10 MHz
Input impedance:50 OHM
Input connector:SMA
